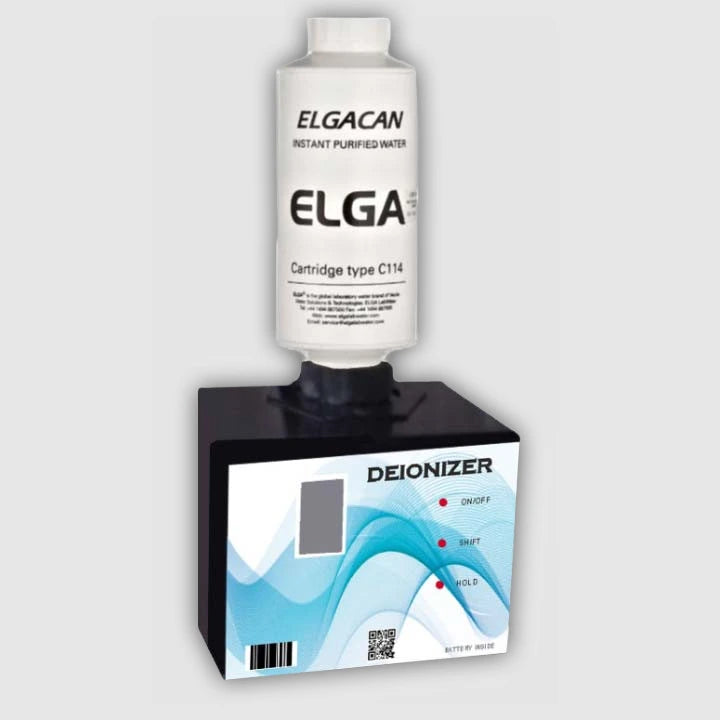

Deionizer B 114 type | Biorays


The Deionizer B 114 type is a specific type of deionization system used to remove impurities from water through a process called ion exchange. It is designed to produce highly purified water by reducing the concentration of dissolved minerals and ions.

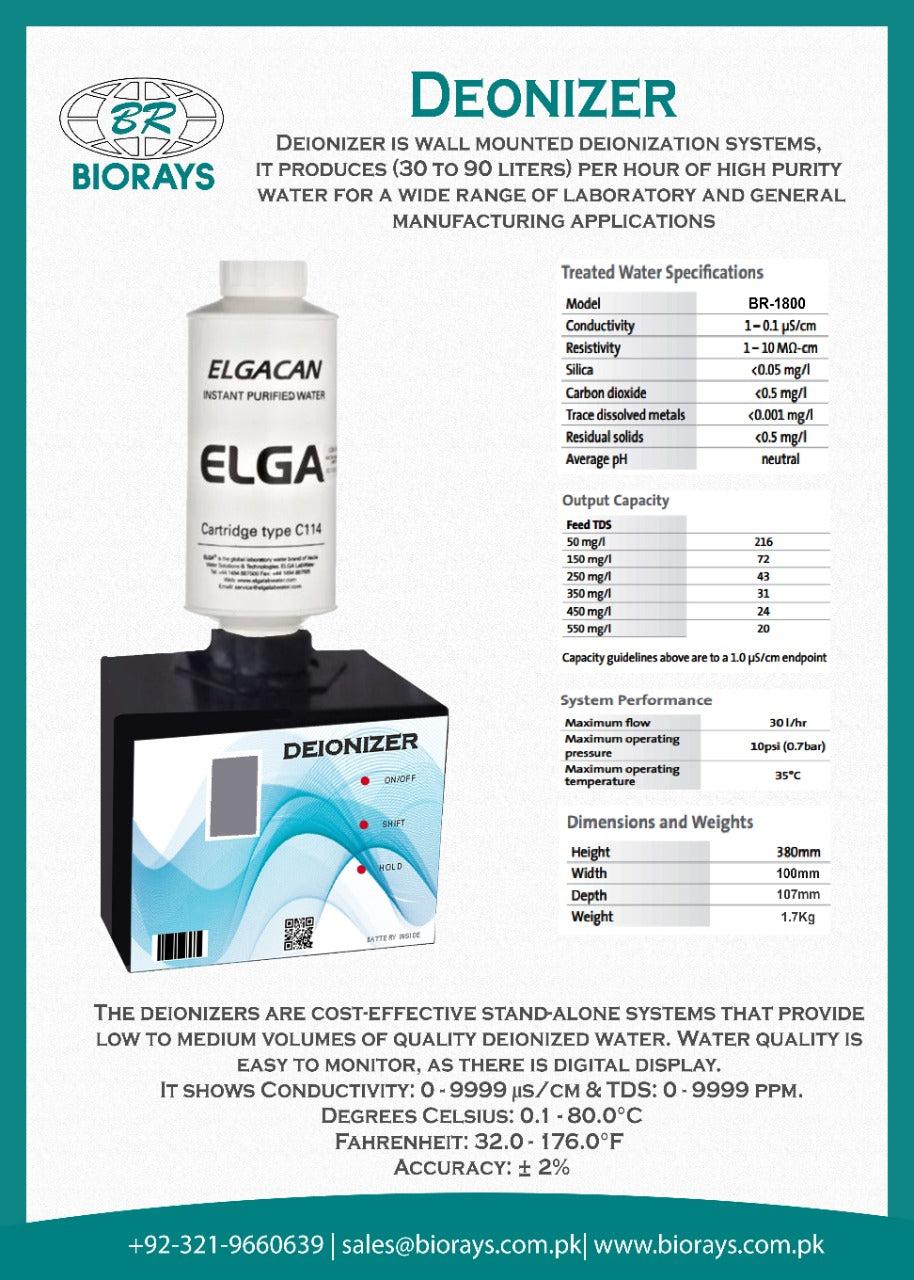

Conductivity: 1-0.1 μS/cm
Resistivity: 1-10 MΩ-cm
Silica: <0.05 mg/l
carbon dioxide: <0.5 mg/l
Trace dissolved metals: <0.001 mg/l
Residual Solids: <0.5 mg/l
Average pH: Neutral

key features:

  1. Ion Exchange Technology: The Deionizer B 114 type utilizes ion exchange resin beds to remove ions from water. The system typically consists of two columns filled with ion exchange resin, one containing cation exchange resin and the other containing anion exchange resin. These resins exchange undesirable ions in the water for hydrogen ions (H+) and hydroxide ions (OH-), effectively removing impurities.

  2. Removal of Dissolved Solids: The Deionizer B 114 type is specifically designed to remove dissolved solids from water, including salts, minerals, and other charged particles. This process results in water that is free from most ionic impurities, making it suitable for various applications that require high-purity water.

  3. Multiple Stages: The Deionizer B 114 type often operates in multiple stages, including a regeneration stage. During operation, the ion exchange resins become exhausted and require regeneration to restore their ion exchange capacity. This typically involves passing regenerant solutions through the resin beds to remove the accumulated impurities and restore the resin's ability to remove ions.

  4. Application-Specific Configurations: The Deionizer B 114 type can be configured to meet the specific requirements of different applications. It may include pre-treatment stages such as carbon filtration or sediment removal to remove particulate matter and organic impurities before the ion exchange process. Additionally, it may incorporate post-treatment stages such as activated carbon filters or UV disinfection to further enhance water quality.

  5. Water Quality Monitoring: The Deionizer B 114 type may feature monitoring systems to assess the water quality and the performance of the deionization process. This may include conductivity meters, pH sensors, and other analytical instruments to ensure that the desired level of purity is achieved consistently.

  6. Versatile Applications: The Deionizer B 114 type is commonly used in various industries and laboratory settings where high-quality water is required. It is employed in pharmaceutical manufacturing, laboratory research, electronics manufacturing, power generation, and many other applications that demand water with low conductivity and minimal impurities.

  7. Maintenance and Regeneration: Regular maintenance and regeneration are essential for the continued performance of the Deionizer B 114 type. This involves periodic replacement or regeneration of the ion exchange resins, monitoring system performance, and maintaining the integrity of the system's components.
